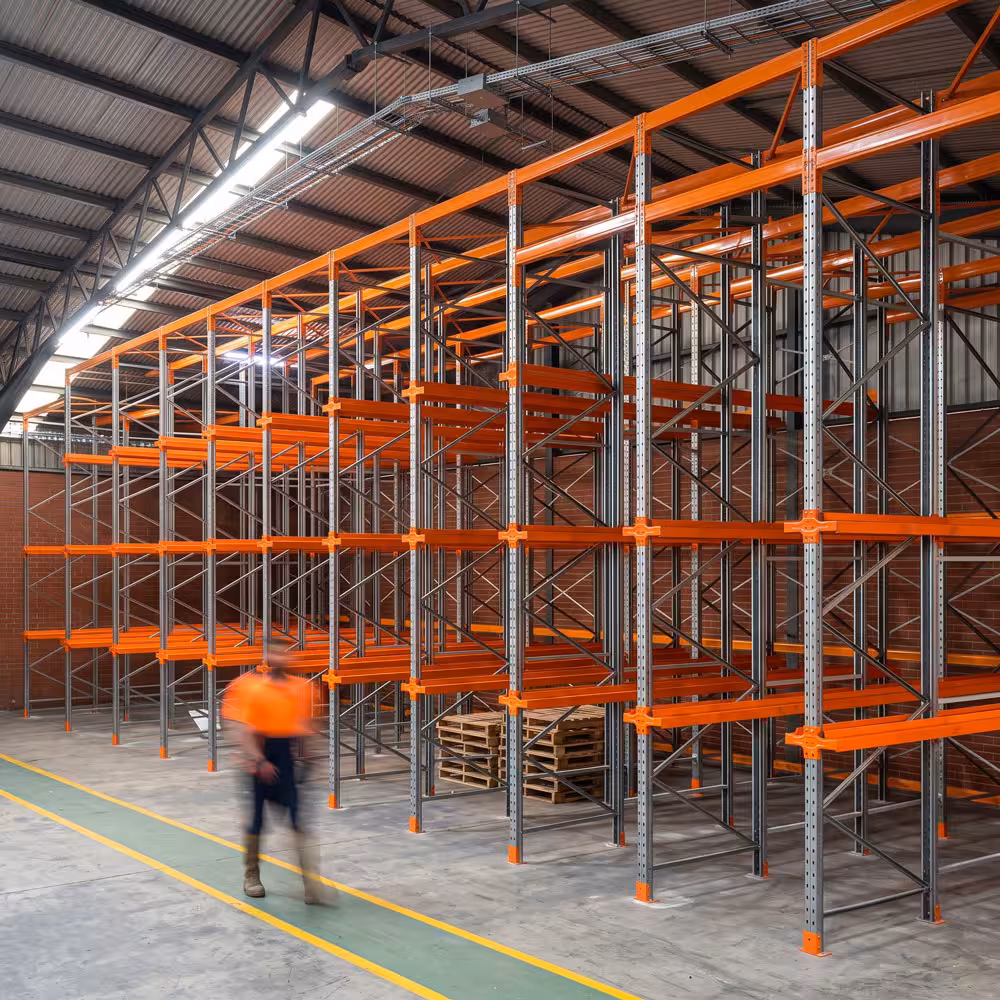

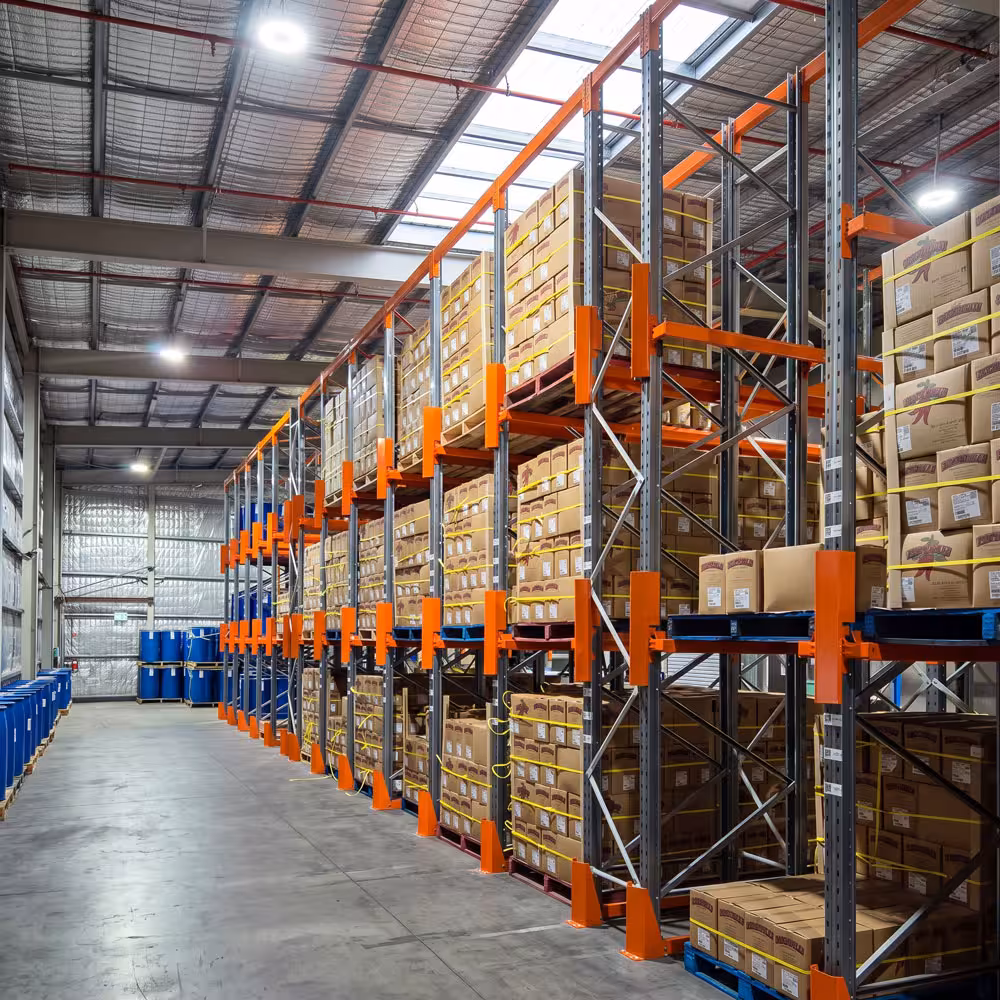

Drive In Pallet Racking
Drive In Pallet Racking is a high-density, cost-effective storage solution designed for bulk goods, uniform pallet stock, and temperature-controlled environments. By eliminating standard picking aisles and allowing forklifts to drive directly into deep storage lanes on a First-In, Last-Out (FILO) basis, this system dramatically increases pallet capacity within your existing floor space while utilising continuous self-centering guide rails for fast, secure positioning.
- Categories: Pallet Racking
- Availability: Express Dispatch
- Product Type: Simple
High-Density Bulk Storage for Maximum Space Efficiency
Drive In Pallet Racking is engineered for operations requiring maximum cubic storage capacity rather than high SKU selectivity. By eliminating the conventional operating aisles between rack rows, drive-in systems condense your storage footprint—allowing you to store up to 75% more pallets within the exact same warehouse envelope compared to standard selective racking.
Designed on a First-In, Last-Out (FILO) inventory rotation, forklifts drive directly into multi-level storage lanes to deposit and retrieve pallets on continuous heavy-duty cantilevered side rails. This continuous lane architecture makes Drive In racking the most economical and space-efficient choice for manufacturing facilities holding bulk runs of identical products, distribution hubs with high-volume homogeneous inventory, and energy-intensive cold storage facilities.
Key Features & Benefits
- High-Density Space Maximisation: Eliminates multiple forklift access aisles, transforming open floor space into dense, high-volume pallet blocks.
- Cost-Effective Bulk Storage: Lowest cost per cubic metre for storing large quantities of uniform SKUs and batch-manufactured inventory.
- Self-Centering Guide Rails: Precision-formed continuous support rails automatically guide and centre pallets into position, ensuring fast, safe alignment and reducing operational handling time.
- Standard Forklift Accessibility: Compatible with conventional counterbalance and reach forklifts equipped with overhead driver protection guards.
- Ideal for Freezers & Coolrooms: Maximises thermal efficiency in cold storage environments where refrigerated airspace carries high operational costs.
- FILO Stock Management: Optimised for seasonal stock, non-perishable bulk goods, and large production runs with shared expiry or batch dates.
Engineered Structural Stability & Protection
Because forklifts operate inside the racking structure itself, system integrity and impact protection are critical. Direct Storage Systems engineers each Drive In system with reinforced structural elements to ensure a rigid, secure, and safe working environment:
- Heavy-Duty Top Tie & Back Bracing: Structural cross-bracing ties the upright frames together over the top and rear of the lanes, delivering exceptional lateral rigidity.
- Heavy-Gauge Floor Floor Guides: Optional structural steel floor guide channels protect the base uprights and keep forklift tyres tracking straight inside each lane.
- Integrated Post Protectors: Heavy steel bull-nose upright protectors shield the entrance columns from forklift turning impacts.
- Certified AS4084 Compliance: Fully engineered and installed in accordance with Australian Standard AS 4084 and WorkSafe regulations, complete with load signage and certified engineering documentation.
On-Site Measuring, CAD Layouts & Local Supply
Planning a high-density drive-in layout requires precise calculation of your pallet overhang, forklift dimensions, lift heights, and mast clearances. Our experienced North Geelong team provides complete site inspections and tailored 2D/3D CAD layouts to design the optimal lane depth, level count, and entry profile for your facility.
Product Documentation
Drive-in pallet racking is a high-density bulk storage system where forklifts drive directly into continuous racking lanes to deposit and retrieve pallets. Pallets rest on heavy-duty side cantilever rails running the depth of the lane rather than standard horizontal cross-beams, eliminating internal operating aisles to maximise warehouse floor space.
Drive-in racking operates on a First-In, Last-Out (FILO) inventory method with a single entry and exit point per lane, making it ideal for non-perishable, high-volume products with uniform SKUs. Drive-through racking features separate entry and exit aisles on opposite sides, operating on a First-In, First-Out (FIFO) rotation suitable for time-sensitive or date-controlled goods.
By removing individual forklift access aisles required by conventional selective racking, a drive-in system can increase warehouse storage capacity by up to 75–80% within the exact same building footprint.
Cold storage and refrigerated facilities carry high energy running costs per cubic metre. Drive-in pallet racking packs maximum pallet density into the refrigerated footprint, minimising wasted airspace and significantly reducing cooling costs per stored pallet.
Standard counterbalance forklifts and reach trucks can be used, provided the overall chassis width, overhead guard, and mast dimensions fit within the lane clear-opening. Direct Storage Systems designs custom lane widths and floor-mounted entry guide rails to prevent forklift collisions with upright frames.
Because forklifts operate inside the racking structure, drive-in systems require heavy-duty protection. Essential safety components include ground guide rails, heavy-duty wraparound post protectors, reinforced baseplates, lead-in rail guides, and back-stops to ensure safe vehicle alignment and prevent structural impact damage.
Yes. All drive-in pallet racking engineered, supplied, and installed by Direct Storage Systems strictly complies with AS 4084 (Steel Storage Racking). Every system includes certified safe working load signage specifying maximum lane depths, rail capacities, and overall bay ratings.
Yes. Systems are custom-engineered to handle standard Australian 1165x1165mm hardwood pallets, Euro/ISO pallets, or heavy-duty plastic skids with appropriate rail depths and pallet overhang clearances.
Yes. Direct Storage Systems provides site measurement, CAD space planning, certified supply, and professional installation services for new and quality-checked used drive-in racking across Melbourne, Geelong, and regional Victoria.
