Standard 2500kg Powder Coated Pallet Jack

Move heavy palletised loads safely and efficiently with the PJR001Y Heavy-Duty Pallet Jack. Sized specifically for standard 1165mm x 1165mm Australian CHEP and Loscam pallets, this unit provides the structural rigidity and hydraulic power required for demanding logistics, manufacturing, and dockside operations.

Precision Hydraulics & Heavy-Duty Frame

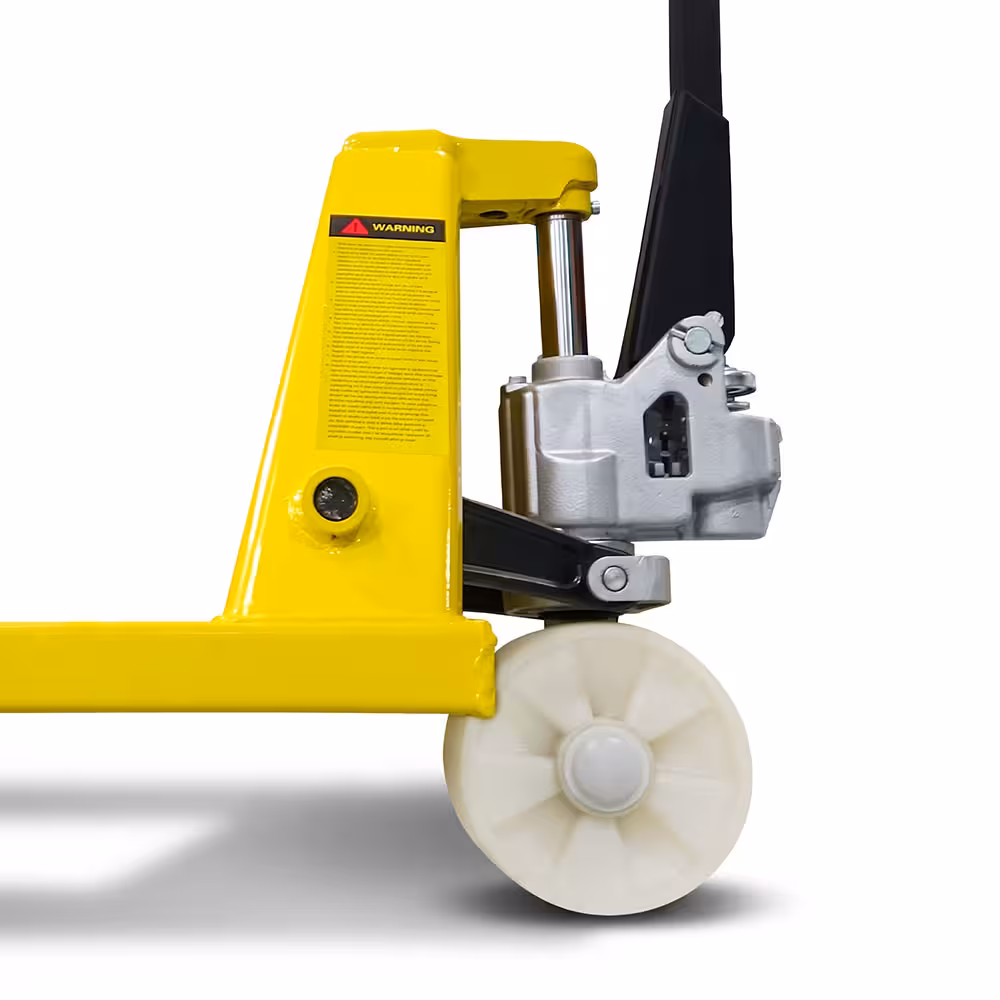

The heart of the PJR001Y is a fully sealed, precision-machined hydraulic pump engineered to resist dust ingress and moisture contamination. The heavy-gauge steel chassis features a durable powder-coated finish that resists chipping, scratching, and corrosion in busy industrial environments. With a lowered fork clearance of 85mm and a maximum lift height of 200mm, operators can enter pallets cleanly and clear dock levelers, ramps, and transition plates without hanging up.

Ergonomic Operation & Low Maintenance

Designed for sustained daily use, the ergonomic drawbar handle provides smooth, comfortable three-position fingertip control (Lift, Neutral, and Lower) to reduce physical effort. The unit comes standard with industrial nylon steer wheels and entry/exit load rollers for low rolling resistance and high load capacities on smooth concrete. For sites requiring floor protection or noise reduction on epoxy and polished floors, non-marking polyurethane rollers are available as an option. Routine maintenance is simple, with accessible grease nipples on all key pivot points and straightforward oil top-up access.

Key Features & Operational Benefits

• 2,500kg Safe Working Load: Engineered to handle full-capacity palletised freight and dense industrial materials.

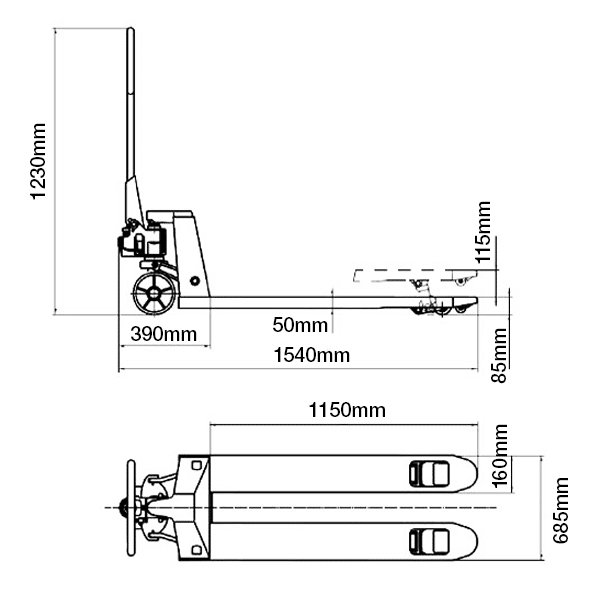

• Australian Pallet Sizing: 685mm overall fork width and 1150mm length ensure seamless entry for standard Australian pallets.
• Sealed Hydraulic System: Dust- and waterproof pump housing protects internal seals and valves from contamination.
• Ergonomic 3-Position Handle: High-leverage handle with integrated fingertip trigger reduces operator fatigue.
• Durable Nylon Wheel Set: Hard-wearing nylon steer wheels and tandem load rollers provide minimal push resistance under heavy loads.
• Straightforward Servicing: Integrated grease nipples allow quick routine lubrication of shafts and load bearings.
• 12-Month Commercial Warranty: Backed by a full 1-year warranty against manufacturing defects.
