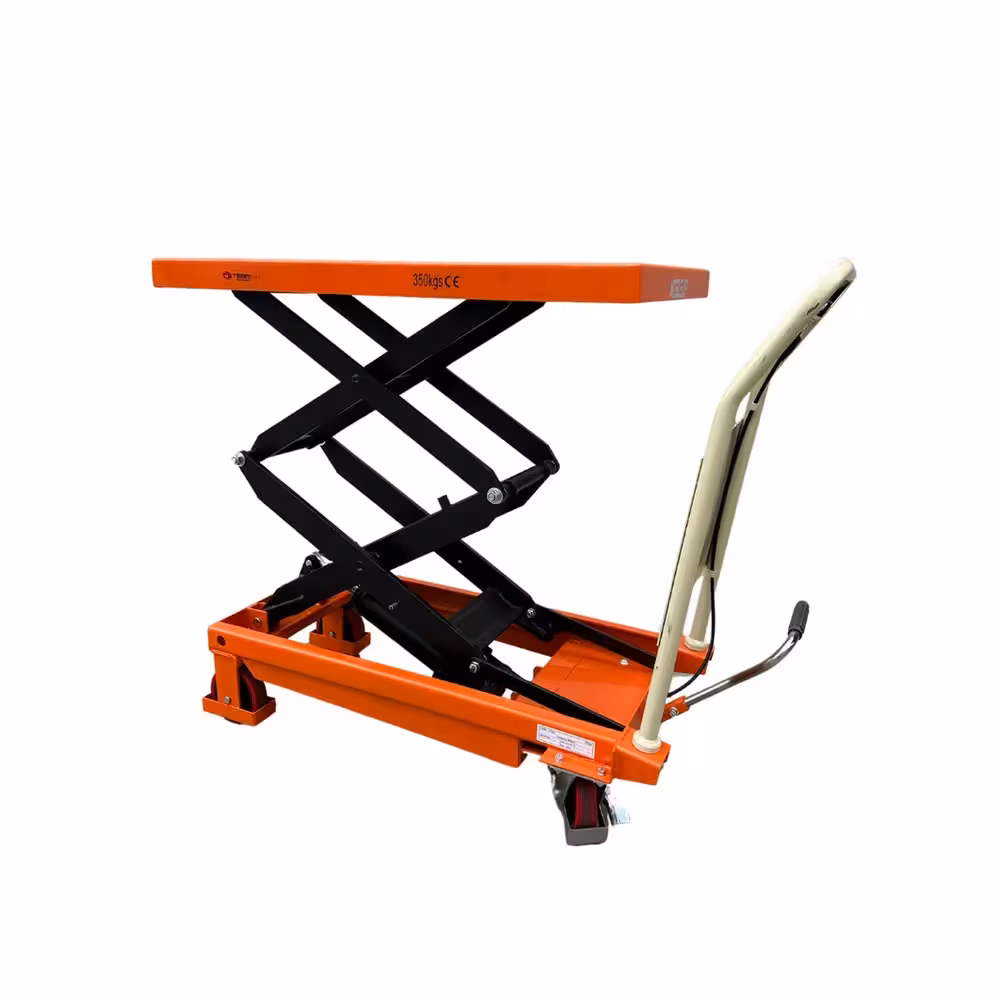

350KG Scissor Lift Table – Manual

Eliminate hazardous manual lifting and position heavy components at the optimal working height with the TFD35 350kg Manual Scissor Lift Table. Engineered by Matex with over two decades of Australian industry experience, this double-scissor hydraulic unit provides stable, high-reach elevation for machine feeding, pallet loading, and assembly operations.

High-Reach Dual Scissor Hydraulic Elevation

Engineered with a reinforced double-scissor pantograph structure, the TFD35 reaches an expansive elevation range from 355mm up to a full 1300mm working height. The hydraulic foot pump allows operators to lift substantial 350kg loads with minimal effort, keeping both hands completely free to steady the payload. Controlled descent is managed via a responsive quick-release hand lever on the 975mm ergonomic push handle, ensuring safe, metered lowering during high-turnover workflows.

Rugged Industrial Build & Safe Workshop Mobility

Built around a heavy-duty 105kg steel chassis, the TFD35 remains rigid and balanced even when fully extended under maximum capacity. Large 125 x 40mm polyurethane castor wheels roll smoothly over concrete expansion joints, workshop debris, and threshold plates. When positioning parts for assembly or maintenance, the positive rear wheel braking system locks the unit securely to prevent unwanted movement.

Key Features & Operational Benefits

• 350kg Safe Working Load: Built to handle heavy motors, metal stock, tooling fixtures, and bulky cartons.
• Extended 1300mm Max Lift: Double-scissor linkage elevates payloads significantly higher than standard single-scissor tables.
• Hands-Free Foot Pump: Precision hydraulic pump eliminates electrical charging requirements and reduces operator fatigue.
• Handle-Mounted Descent Valve: Quick-release trigger delivers smooth, variable-speed lowering control.
• Positive Rear Wheel Brakes: Heavy-duty foot-activated brakes lock castors firmly for stationary workbench stability.
• Ergonomic 975mm Handle Height: Designed to reduce spinal flexion and strain during equipment transport.
• 1-Year Warranty: Backed by Matex commercial warranty protection for long-term reliability.
