Cable Protection

Heavy-Duty Protection for Power Leads, Hoses & Pedestrian Pathways

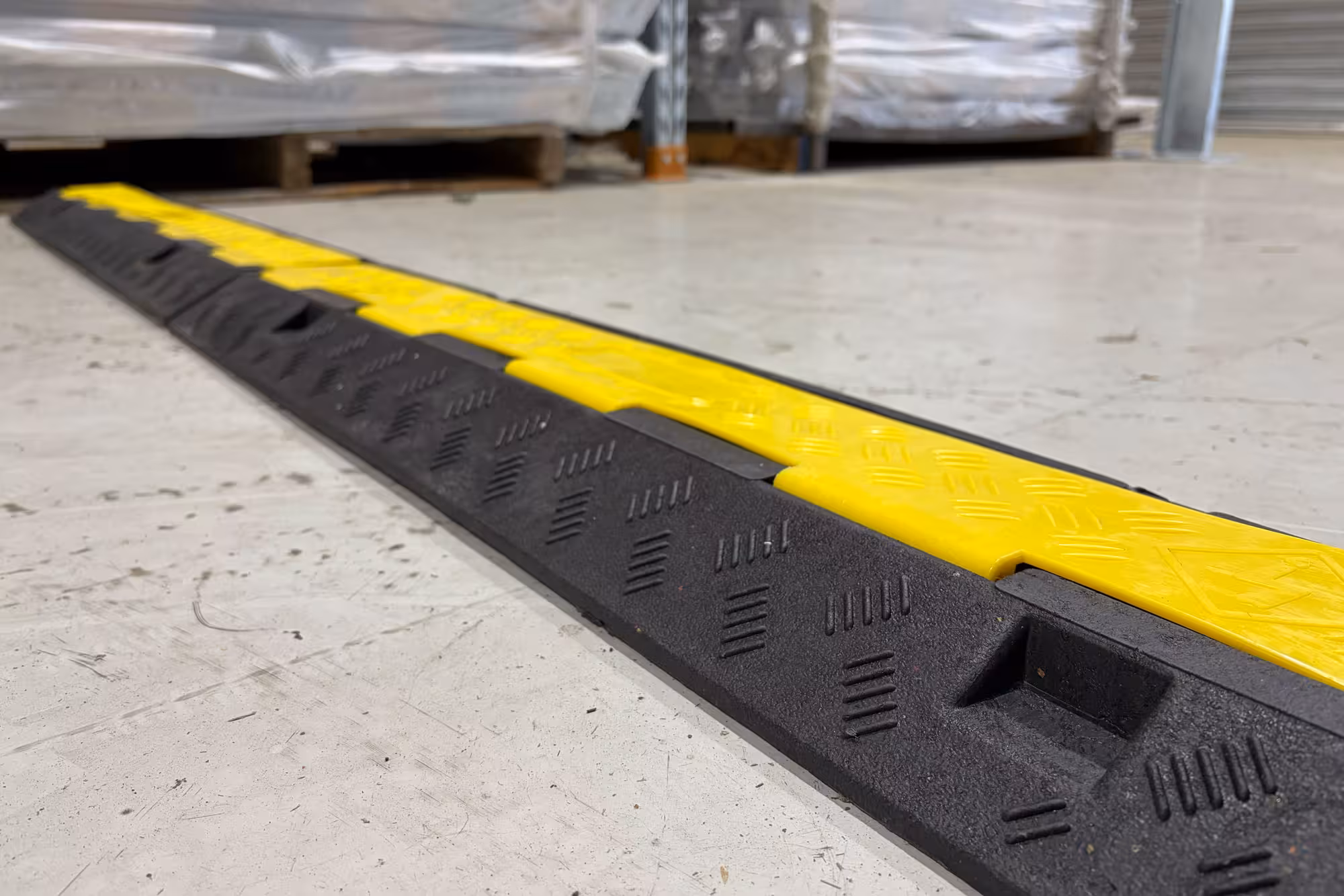

Exposed electrical leads, pneumatic lines, and water hoses across warehouse floors or active driveways create serious risks: they introduce immediate tripping hazards for staff and leave expensive equipment vulnerable to crushing from vehicle traffic. Our commercial cable protector ramps create a durable, ramped bridge that shields vital services while providing a stable, visible crossing for personnel and heavy machinery.

Manufactured from high-density vulcanised rubber and impact-modified PVC, these ramps absorb continuous compression loads without cracking or slipping out of alignment. Designed for both indoor and outdoor applications, they establish clean, compliant pathways across loading docks, construction yards, and public event spaces.

Selecting the Right Channel Configuration

• 1-Channel (Drop-Over Profile): A lightweight, rapid-deploy solution designed for indoor foot traffic. Simply place directly over single extension cords, network cables, or audio leads in offices, retail floors, or exhibition halls without uncoupling connections.

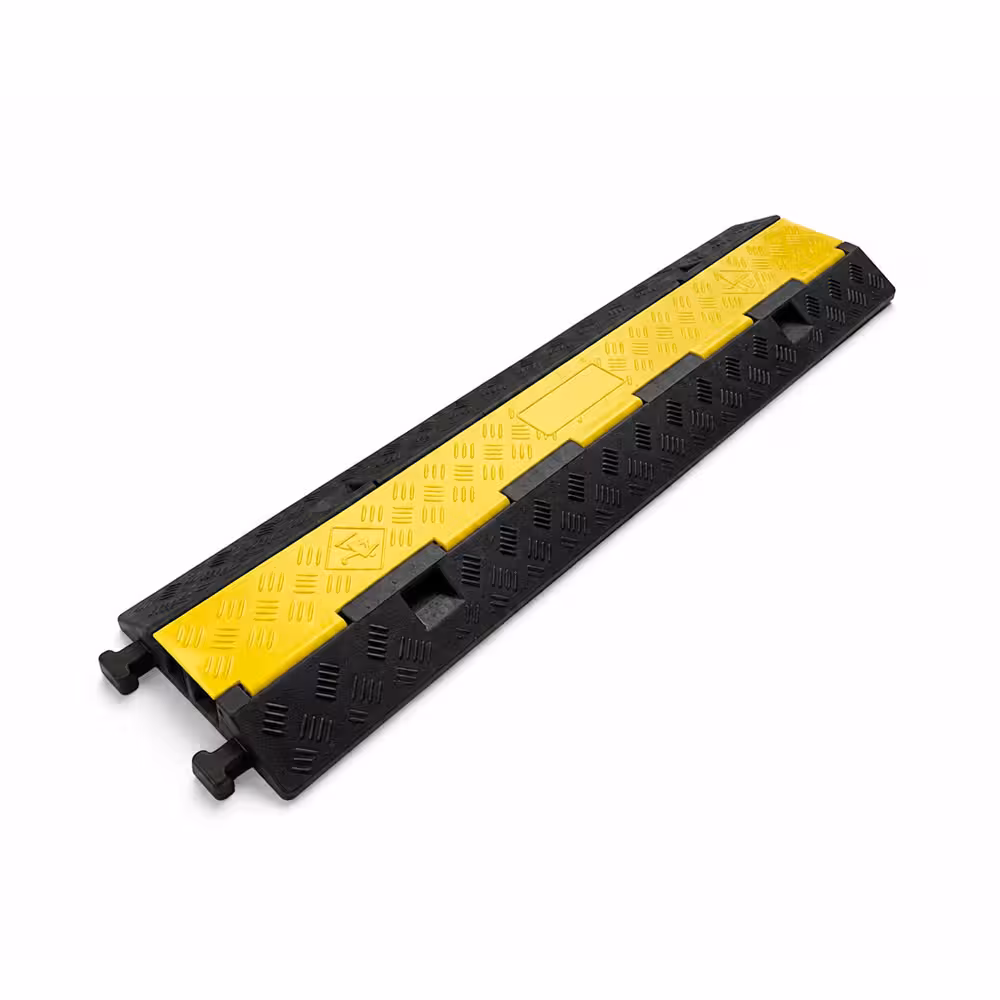

• 2 & 3-Channel (Trade & Light Commercial): The versatile choice for workshops and standard commercial bays. Equipped with a top-opening hinged safety lid that allows 15-amp power leads and air lines to be placed in dedicated channels, supporting axle loads up to 2 tonnes (2-channel) or 10 tonnes (3-channel).

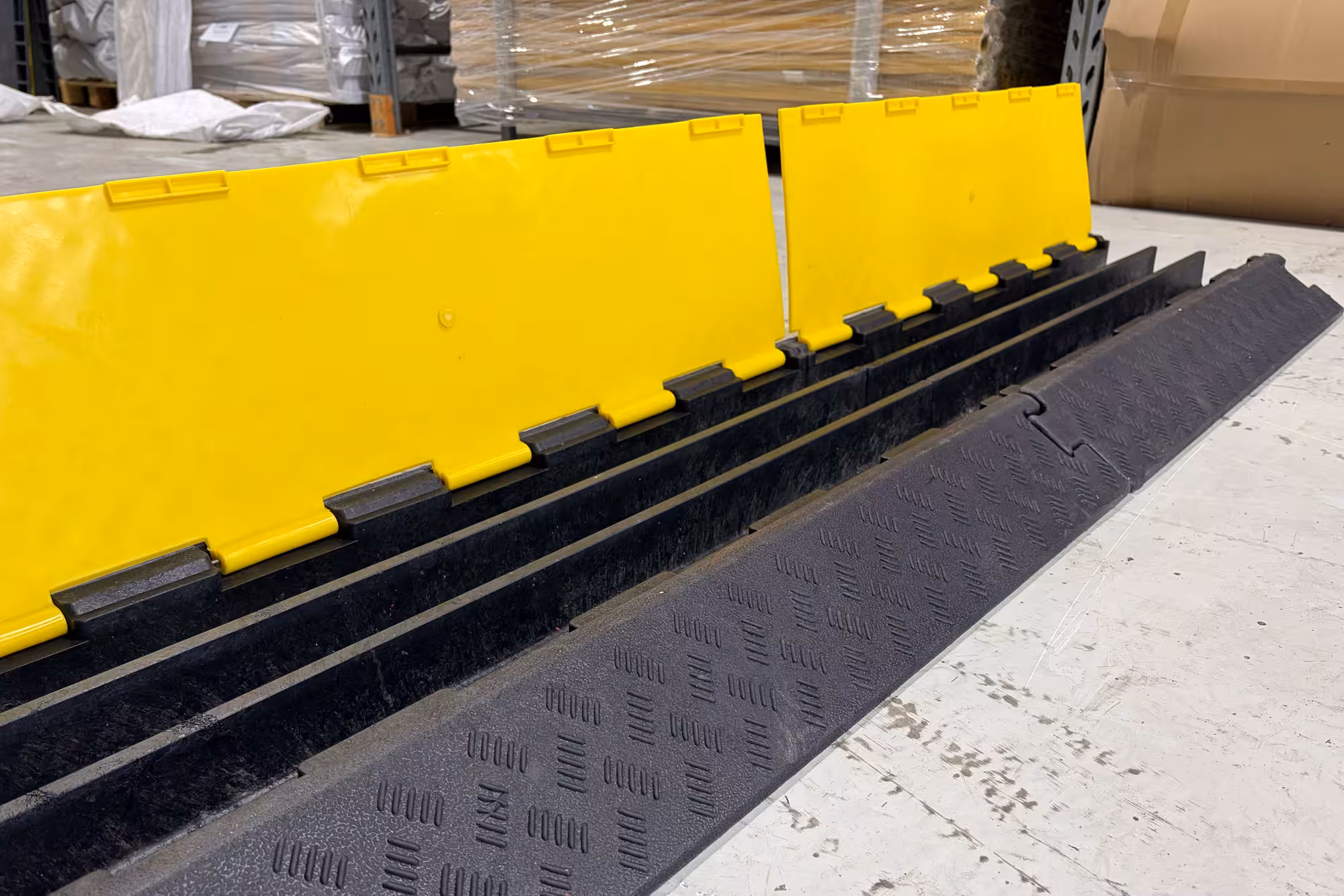

• 5-Channel (Heavy Industrial & Freight Lanes): Engineered for major worksites, distribution hubs, and event infrastructure. Provides multiple segregated channels to route heavy three-phase power feeds, data trunks, and water supply lines across active vehicle routes with a 10-tonne axle capacity.

Key Design Features

• High-Density Rubber Base: Heavy-gauge, non-conductive rubber foundation grips asphalt and polished concrete slabs securely, preventing ramp creep under rolling vehicle tyres.
• High-Visibility Safety Yellow Lids: Bright contrast lids ensure vehicle operators and pedestrians identify the crossing well in advance, even in low-light industrial areas.
• Modular Interlocking Connectors: Heavy-duty male/female dog-bone or T-connectors on the multi-channel units allow multiple ramps to lock together seamlessly across wide driveways or long corridors.

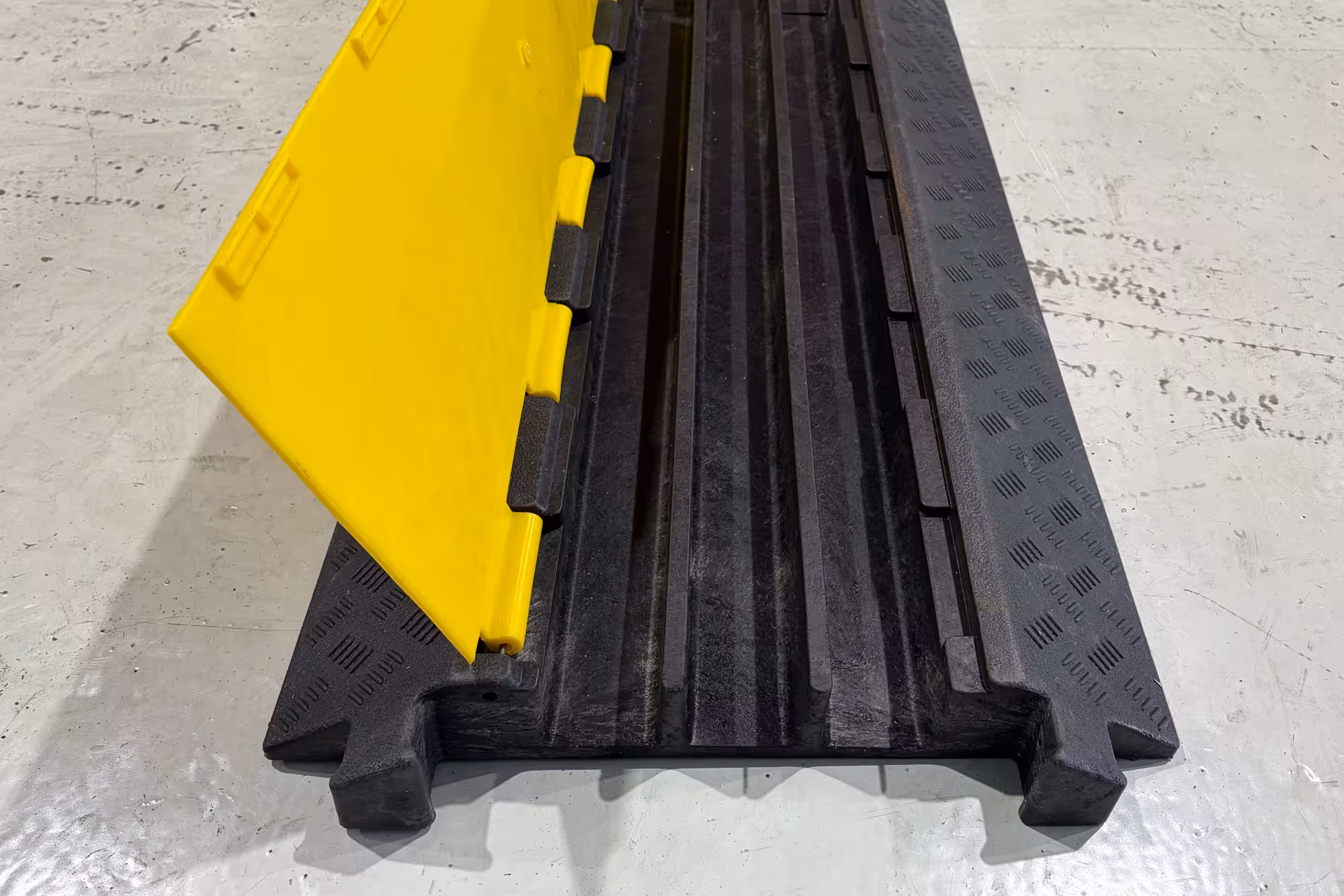

• Top-Loading Hinged Lids: Heavy-duty PVC lids flip open effortlessly, enabling quick cable inspection, additions, or removals without having to pull leads through end-to-end.
• Weather & UV Resistant: Built to endure rain, oil spills, and sustained Australian sun exposure without becoming brittle.

Common Applications

• Warehousing & Freight Terminals: Safe transit for forklifts, pallet trucks, and order pickers over essential charging cables and network lines.
• Construction & Civil Sites: Heavy-duty vehicle crossing points over temporary site power supplies, generator leads, and dewatering hoses.
• Workshops & Service Centers: Organising high-pressure airline runs and drop cords across vehicle service lanes and assembly benches.
• Events, Festivals & Outside Broadcast: Safeguarding critical optical fibre, multi-core audio cables, and event distribution lines across heavy pedestrian thoroughfares.
